Szczegóły Produktu:
|
| Pozycja: | 16-portowy przełącznik Poe | Funkcjonować: | POE, przemysłowe |
|---|---|---|---|
| Prędkość przesyłu danych: | 1000 Mb / s | Zasilacz: | AC110V / 220V |
| Maksymalna moc wyjściowa: | 250 W (pojedynczy port: 15,4 W) | wymiar: | 44 * 440 * 160 mm (wys. * Szer. * Głęb.) |

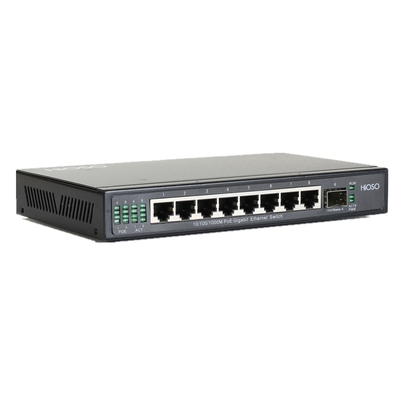

Multifunctional Optical Fiber Switch Fast 8 Port Poe Ethernet Switch
Overview
FOWAY1509PFS supports IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards. It can auto discover the power receiving devices which support IEEE802.3af/at standard and supply power to it. To the connected devices which not support PoE, it will auto stop supplying power.
Character
Technical Specification
|
Parameter |
Specification |
|
PoE |
PoE ports: 8 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/power cutting |
|
Wavelength |
SFP Module: 850nm/1310nm/1490nm/1550nm |
|
Distance |
1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) ;Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km |
|
Port |
8 10/100/1000M RJ45 ports (PoE optional); 1 100M/1000M SFP uplink port |
|
MAC |
16K |
|
Buffer memory space |
2Mbit |
|
Bit error rate |
<1/1000000000 |
|
MTBF |
100000 hours |
|
Power |
DC48V |
